Hydrogen

As the world starts working towards a Nett zero world with stringent targets, and India kicked off this activity in 2023, Advantek immediately stepped in to support the industry as always. We have started offering different components for this segment as given below.

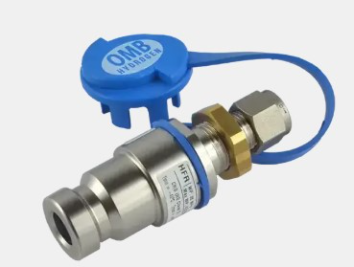

Filling Valves - Hydrogen

Filling Receptacle – 350 Bar

  • The filling receptacle 350bar is equipped with:
  • 50-micron filter
  • Check valve
  • Dust protection cap
  • SAE J2600 nozzle profile
  • Max flow: 370 g/s @max deltaP 438 bar

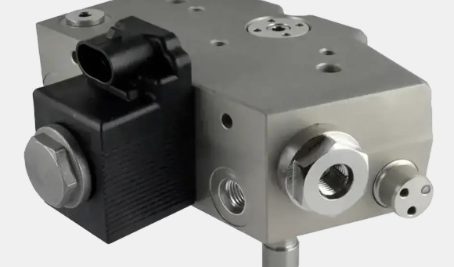

Hydrogen Cylinder Valve

Gen 1 Cylinder Valve – 350 Bar

  • The valve is equipped with the following components:

  • Inlet fitting

  • Outlet port

  • Single inlet/outlet port without check valve

  • Solenoid valve electronically controlled;

  • Manual safety tap, to be used in order to isolate the automatic valve (in case of failure or maintenance);

  • Bleed Valve, directly connected to the tank (in order to by-pass the excess flow, the manual valve and the solenoid valve);

  • Thermal PRD (pressure relief device to prevent the explosion of the tank due to fire, based on a glass

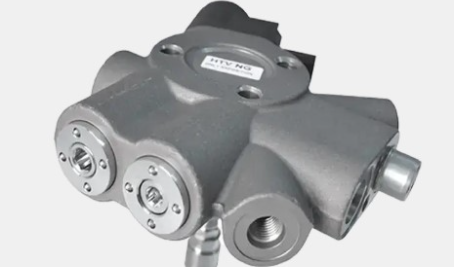

Hydrogen Cylinder Valve

Gen 2 Cylinder Valve – 350 Bar

  • Inlet / outlet single or separated

  • Solenoid valve electronically controlled

  • Manual safety tap, to be used in order to isolate the automatic valve (in case of failure or maintenance)

  • Bleed Valve, directly connected to the tank (in order to by-pass the excess flow, the manual valve and the solenoid valve)

  • Thermal PRD (pressure relief device to prevent the explosion of the tank due to fire, based on a glass bulb concept)

  • Filter 50 micron

  • Excess flow valve (flow limiter)

  • Tomnornti Ira cancrir

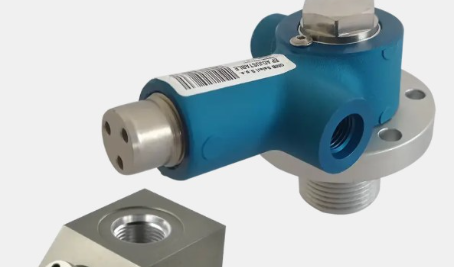

Hydrogen – End Plug

End Plug with TPRD – 350 Bar

  • Nominal working pressure: 350 bar
  • Temperature range: -40°C / +85°C
  • TPRD activation (glass bulb): 110°C or 102,7°C (± 5°C)
  • Body material: Al 6061 T6 anodized
  • Weight: 325 g

RES
NEW VERSION: Rotable more compact



Hydrogen – Middle Plug

Middle Plug with TPRD – 350 Bar

  • Nominal working pressure: 350 bar

  • Temperature range: -40°C / +85°C

  • TPRD activation (glass bulb): 110°C or 102,7°C (± 5°C)

  • Body material: AISI 316L

  • Weight:1050 g

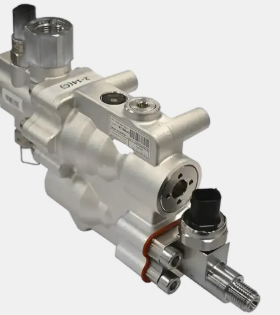

Hydrogen – High Pressure Regulator

High Pressure Regulator – 350 Bar

  • The OMB 700/350 bar H2 Pressure Regulator (HPR) is a mechanical double stage regulator designed for fuel cell applications with the following components integrated:

  • Inlet/outlet port

  • Inlet Filter 10 microns

  • Pressure relief valve (PRV)

  • Excess Flow Valve (EFV)

FEATURES

  • The HPR can be requested with the following options:
  • High Pressure sensors
  • Low Pressure sensors (up to 2)
  • Low Pressure Service Valve
  • Outlet regulated pressure from 8bar to 16bar Inlet 700bar:
  • Voss/Autoclave OD 3/8
    Inlet 350bar: SAEJ 1926
  • PRV: customizable activation
  • Possibility to install high and low-pressure sensor

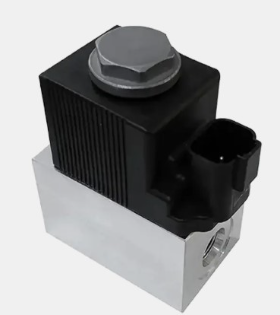

Hydrogen – Solenoid Valves

High & Low Pressure SOV – 350 Bar

  • Sov with manual valve
  • On/off safety device
  • Possible configuration 12/24v.

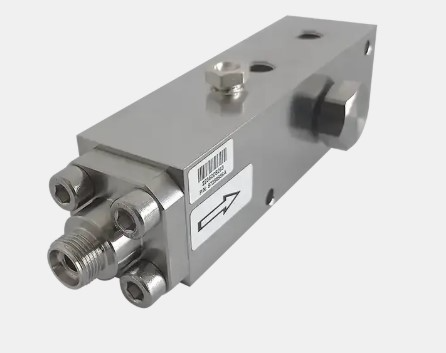

Hydrogen – Manifold

High Pressure Manifold – 350 Bar

  • Multifunctional manifold, with the possibility to integrate:
  • Inlet filter 10/50 microns
  • Inlet check valve
  • Gas dstribution to the tanks
  • Gas distribution to the regulator
  • Pressure sensors
